Design and Engineering for Pressure-Control Equipment

Concept through detailed design, drawing packages and requalification for wellhead, subsea, valve and choke-and-kill equipment — delivered to API standards by engineers who have built this equipment before.

talk to an engineer

What We cover

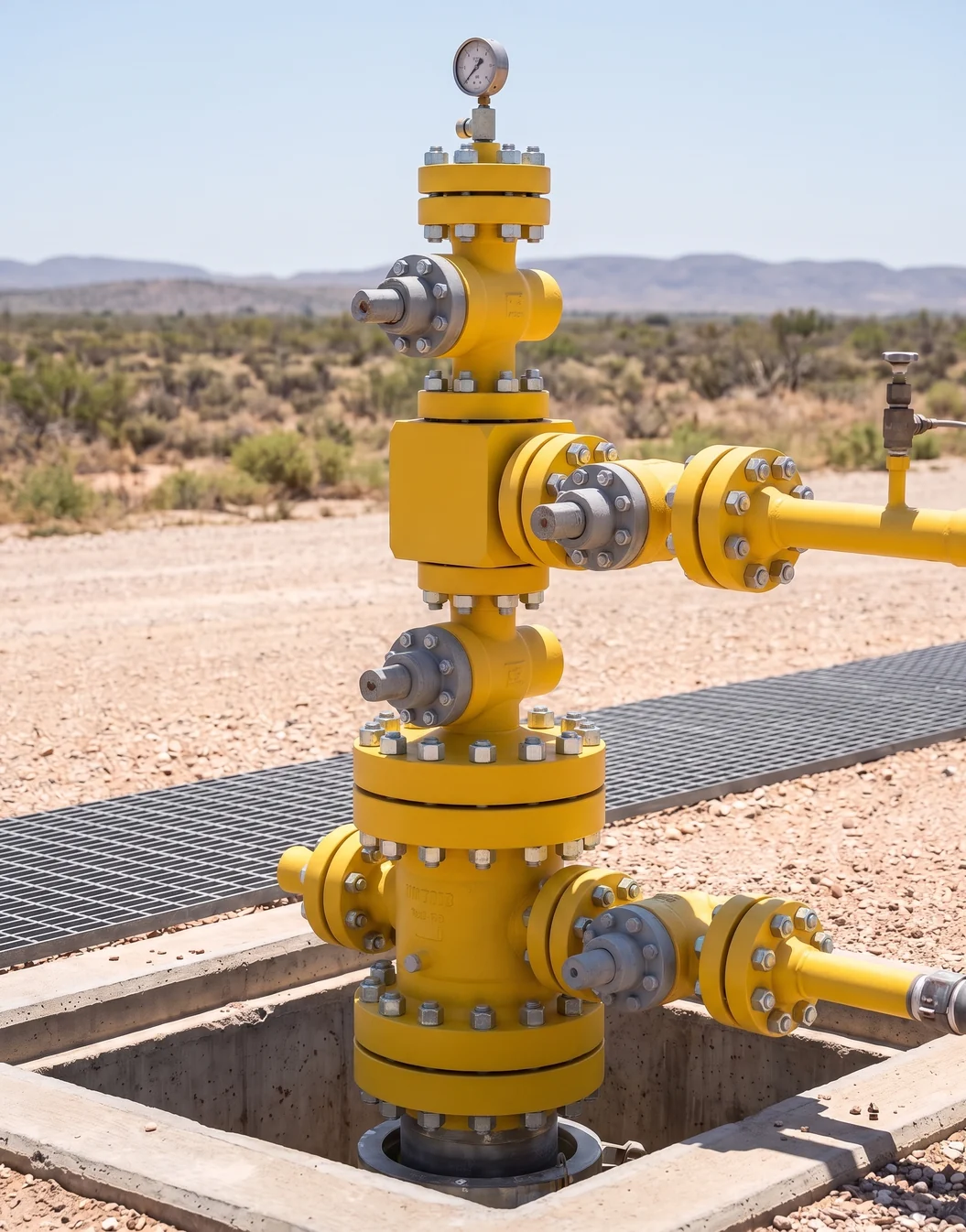

API 6A wellhead and christmas tree assembly installed on a well pad

Wellhead and tree equipment

Casing and tubing heads, hangers, adapters and associated components.

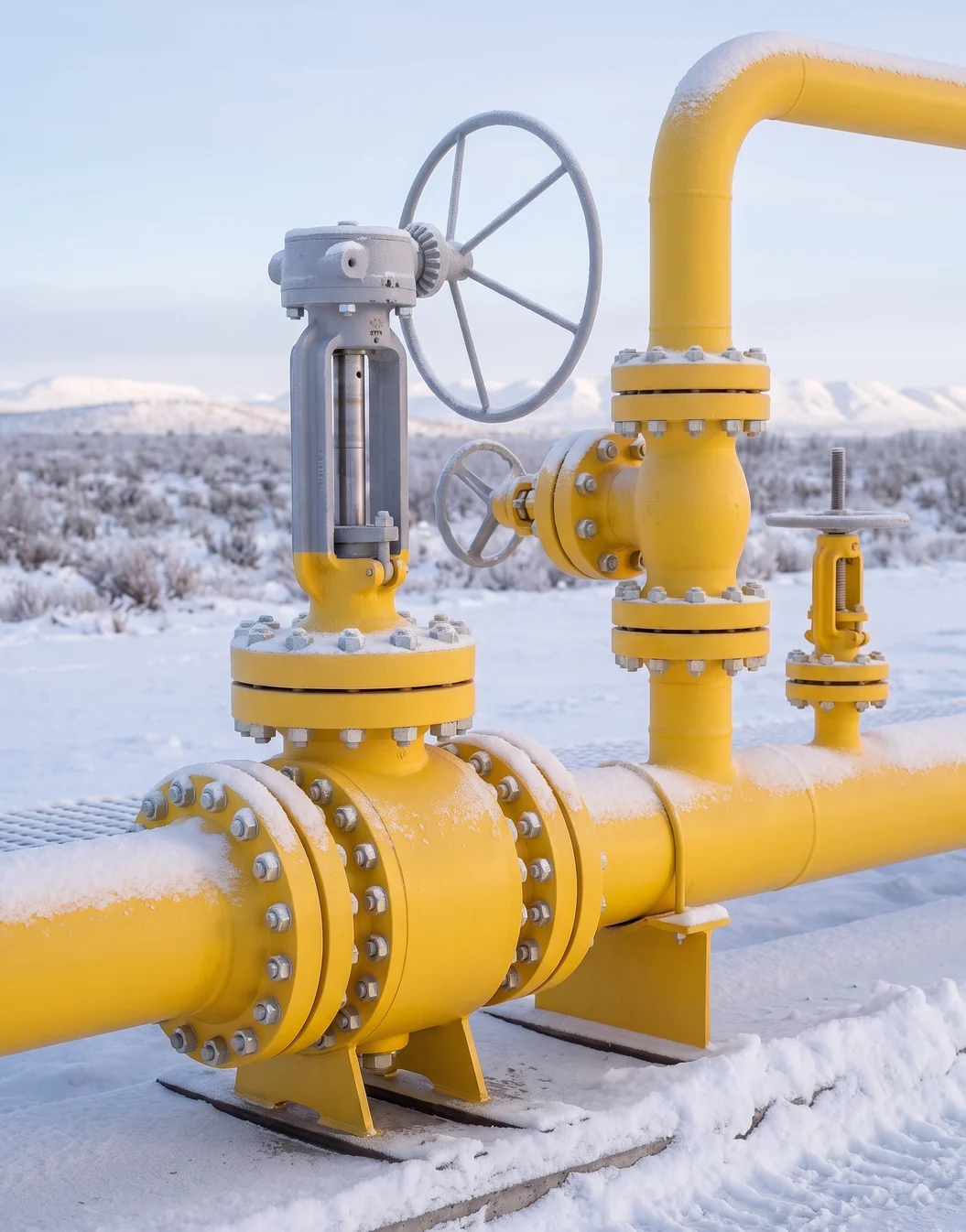

Flanged pipeline gate valve and process valves on an above-ground pipeline

Pipeline and process valves

API 6D Gate valves, Ball valves and pipe flanges and connectors

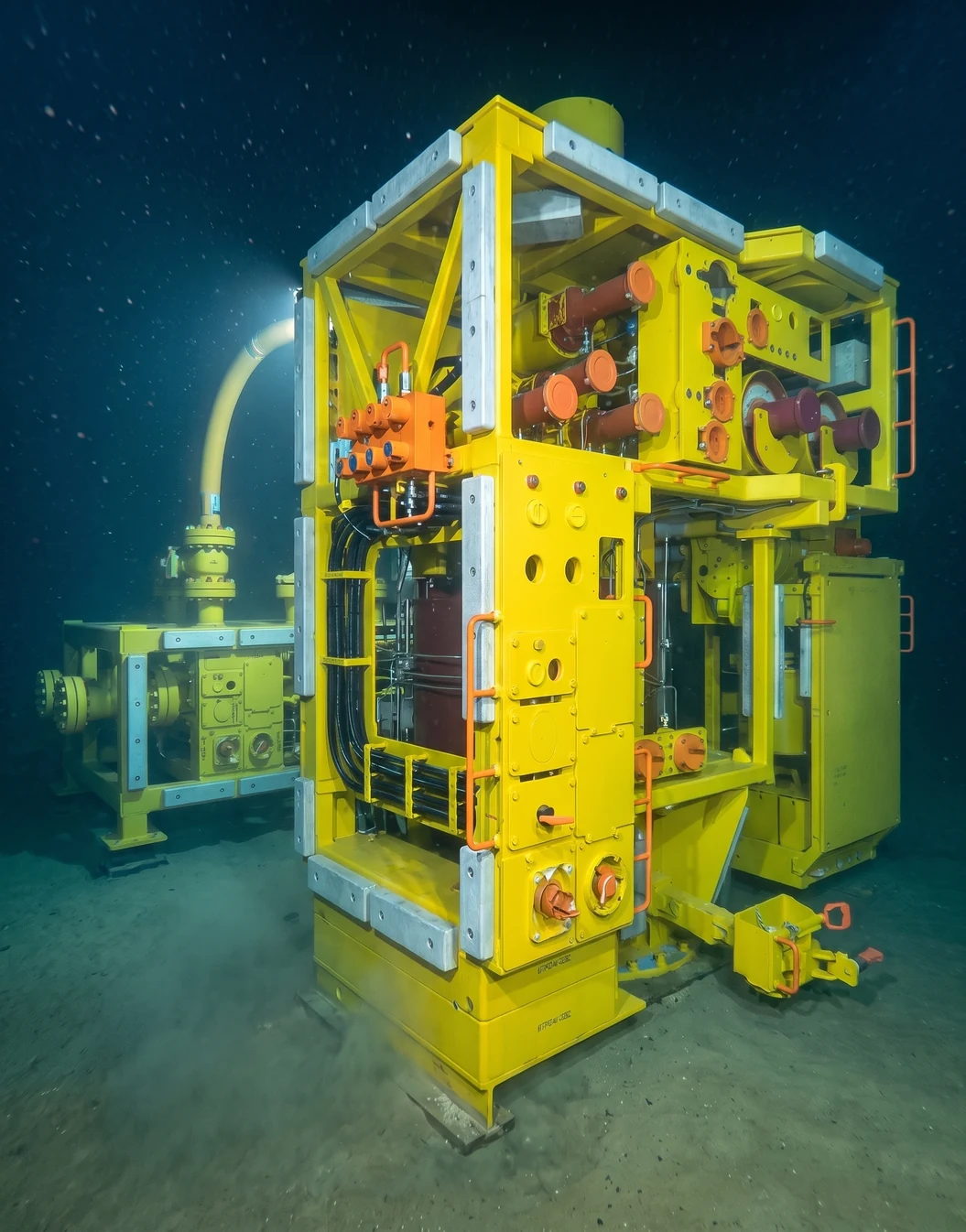

Subsea tree and production manifold installed on the seabed

Subsea systems

Subsea Trees, manifolds, Subsea Distribution Systems & running tools

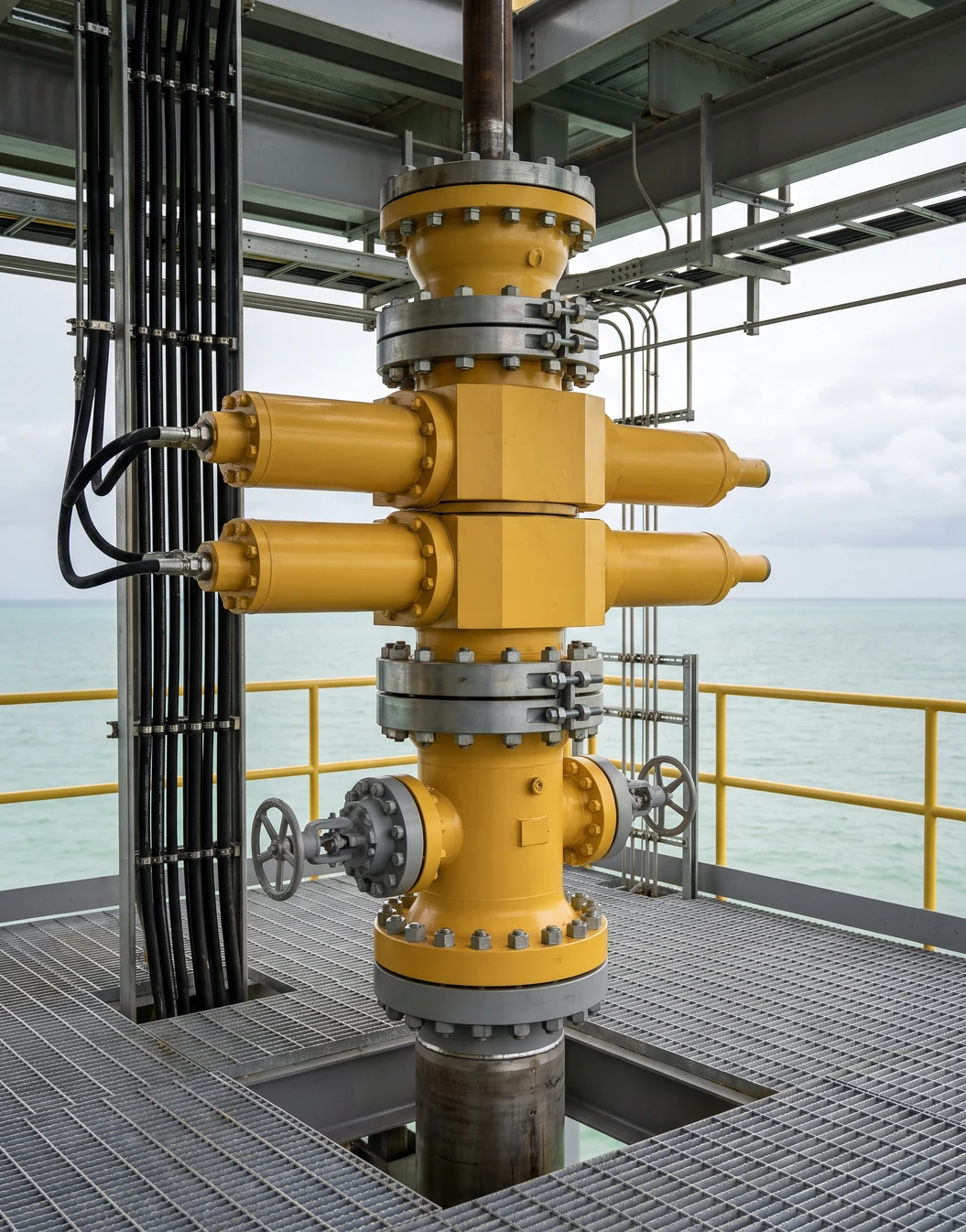

Surface drill-through BOP stack with annular and ram preventers

Drill-through equipment

API 16A Drill Through Adapters, DSAs, and drill-through equipment, skids

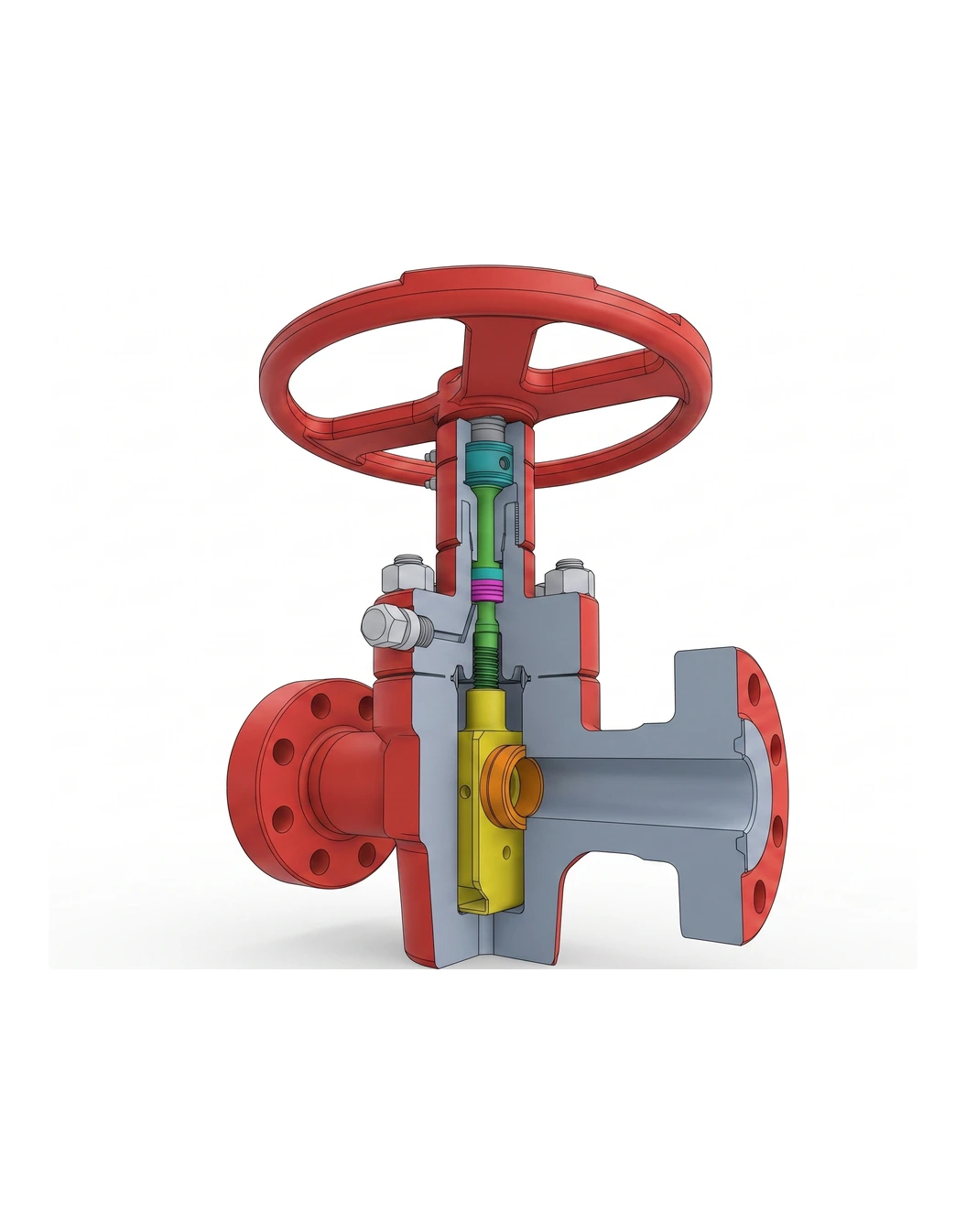

Cross-section of an API 6A gate valve showing gate, seats and stem

Design re-qualification

Bringing legacy equipment and drawing packages up to current standard revisions

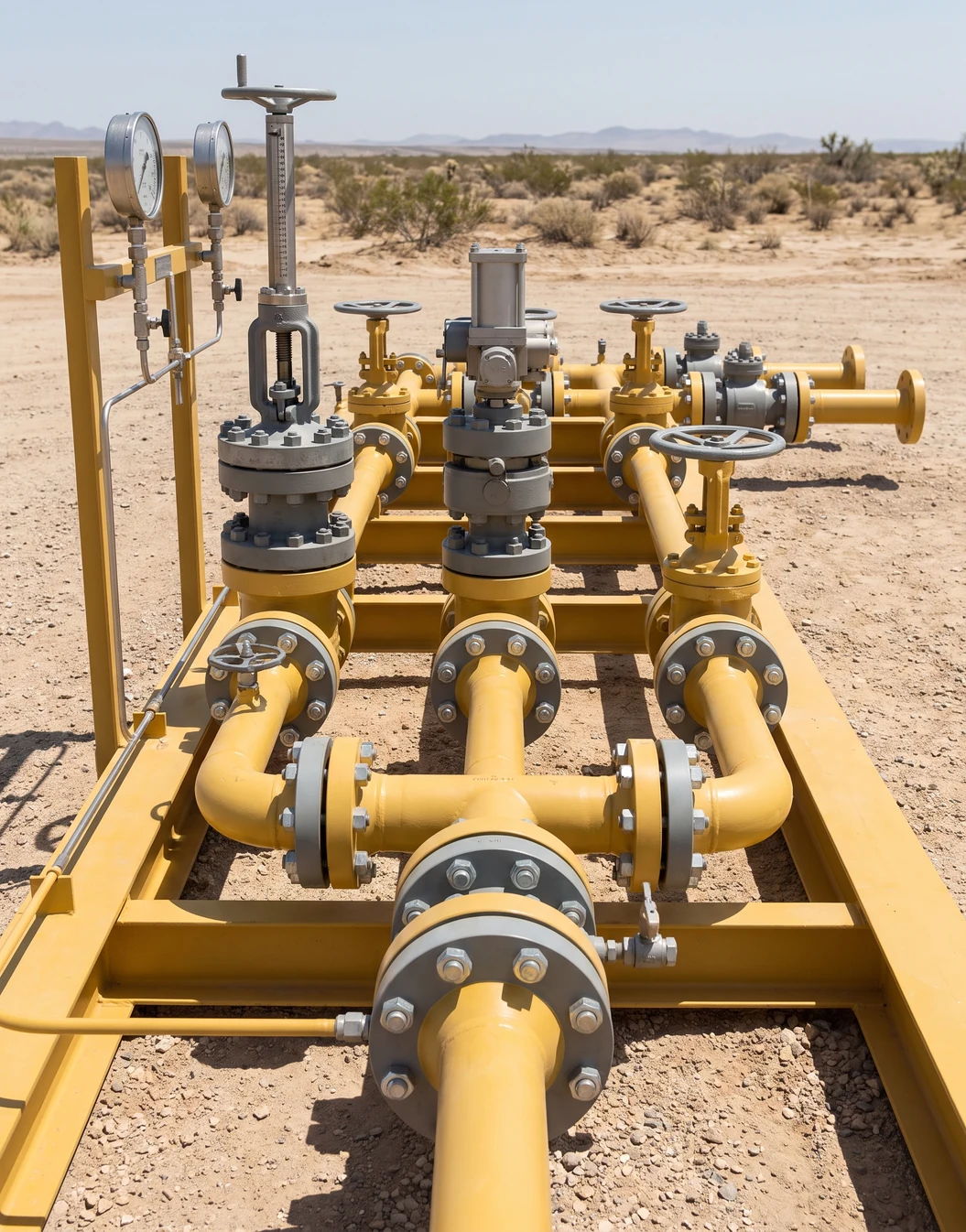

API 16C choke and kill manifold with dual choke runs and bypass

Choke and kill systems

Chokes, Valves, Manifolds, barrels and associated line connections

What you receive

Design calculations and sizing

Get design calculation and complete design packages in the formats you need such as Microsoft Excel, Mathcad or Custom Calculators

3D models and assemblies

3D Models and assemblies in all major 3D CAD Software SolidWorks, Creo, Siemens NX, CATIA, AutoCAD, Inventor and many more

Detail and assembly drawings with GD&T

Get industry expert vetted detail and assembly drawings which will be made to your templates and drawing standards

Bills of material

We can generate BOMs for complex assemblies, structural weldments equipment with information such as material specs, quality spec and coatings

Material and welding specifications

Industry standard compliant material specifications, coating specification and weld specifications

Design dossier and compliance documentation

Technical documentation for Sales, Marketing as well as installation manuals which are comprehensive and accurate

How we work

01

Send us a scope

A specification, a sketch, an existing drawing, or a conversation. You don’t need a finished brief to start.

02

You get a plan back

Deliverables, applicable standards, timeline and the engineer who will do the work — before anything is committed.

03

Work starts inside a week

Our in-house team of industry expert engineers starts the work immediately

04

You review as we go

Interim reviews at agreed points, not a single hand-over at the end. Problems surface while they’re still cheap to fix.

Have a scope you need covered?

Send us the specification or the drawing. We’ll tell you what we’d do, what it would take and when we could start.
